amlnn-model-playground/examples/LLMs/readme.md

LLM Examples

Resource Requirements

Model	CPU	NPU	GPU
Qwen(0.5B)	Minimum cores: 4 DDR: 4G (2G reserved for NN)	At least 3.2T	NO
Qwen(1.8B)	Minimum cores: 4 DDR: 8G (6G~6.5G reserved for NN)	At least 3.2T	NO
Gemma(2B)	Minimum cores: 4 DDR: 8G (5.5G~6G reserved for NN)	At least 3.2T	NO

Performance

ADLA2: A311D2_3.2T / S905X5_4T

LLM Model	SOC	Dtype	Seqlen	Max_Context	New_Tokens	TTFT(ms)	Tokens/s	memory(G)
DeepSeek-R1	A311D2	w8a8	64	320	256	927.79	4.95	1.99
DeepSeek-R1	S905X5	w8a8	64	320	256	514.86	4.47	1.73
Gemma-2B	A311D2	w8a8	64	320	256	846.66	2.64	3.93
Gemma-2B	S905X5	w8a8	64	320	256	482.92	3.08	2.77
Gemma-3-1B	A311D2	w8a8	64	320	256	702.88	5.08	1.9
Gemma-3-1B	S905X5	w8a8	64	320	256	468.97	6.44	1.38
Llama3.2_1B	A311D2	w8a8	64	320	256	711.64	5.92	1.69
Llama3.2_1B	S905X5	w8a8	64	320	256	695.92	5.42	1.5
Qwen1.5_1.8B	A311D2	w8a8	64	320	256	794.50	4.52	2.2
Qwen1.5_1.8B	S905X5	w8a8	64	320	256	983.93	4.47	1.9
Qwen2.5_0.5B	A311D2	w8a8	64	320	256	400.44	10.50	0.88
Qwen2.5_0.5B	S905X5	w8a8	64	320	256	400.37	10.97	0.66
Qwen2.5_1.5B	A311D2	w8a8	64	320	256	882.49	3.94	2.37
Qwen2.5_1.5B	S905X5	w8a8	64	320	256	874.06	4.16	1.76
TinyLlama-1.1B-Chat-v1.0	A311D2	w8a8	64	320	256	763.07	6.51	1.31
TinyLlama-1.1B-Chat-v1.0	S905X5	w8a8	64	320	256	1161.82	5.85	1.15
TinyLlama-1.1B-Chat-v0.4	A311D2	w8a8	64	320	256	740.02	6.38	1.31
TinyLlama-1.1B-Chat-v0.4	S905X5	w8a8	64	320	256	733.01	6.28	1.11

Compile

CPP

To compile the CPP project using Android NDK, follow these steps:

1. Get the llmsdk library and header files: Clone the amlnn-toolkit repository to get the necessary libraries for compilation.

   # Clone to the parent directory of amlnn-model-playground
   git clone https://github.com/Amlogic-NN/amlnn-toolkit.git


2. Set the NDK path:

   export NDK_PATH=/your/ndk/path/android-ndk-r25c


3. Add NDK to your PATH:

   export PATH=$NDK_PATH:$PATH


4. Compile: Navigate to the cpp directory and run build-android.sh:

   cd examples/LLMs/cpp
   ./build-android.sh


5. Run: Push the compiled executable, model, and tokenizer to your Android device.

   Optional configuration:

   • Push llmsdk.so: If not already present on the device, push it to /data/local/tmp.
   • Set permissions:

     chmod +x demo_llm_main


   • Set environment variable:

     export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/vendor/lib64/:/data/local/tmp


   Then execute:

   ./demo_llm_main Qwen2.5-1.5B-Instruct-F16_quant_i8_t7c.adla tokenizer.json

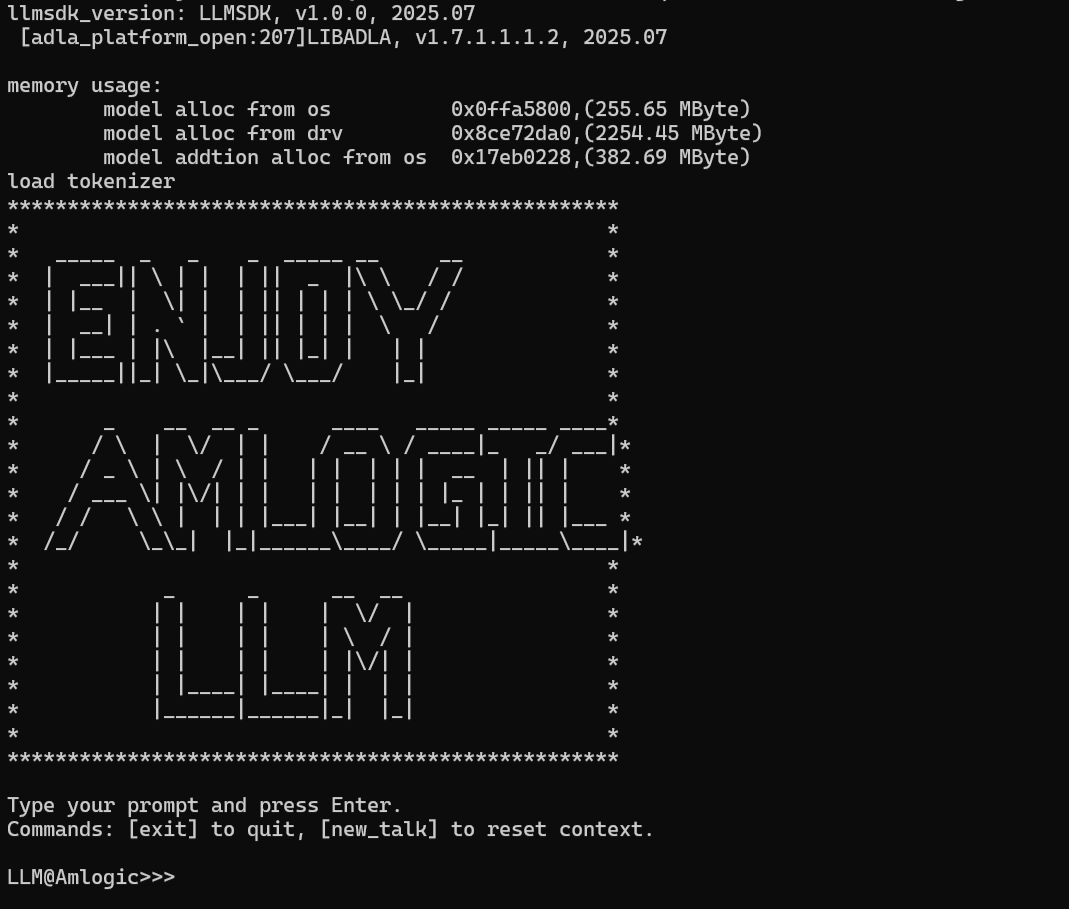

Result

Banner	Inference Result
